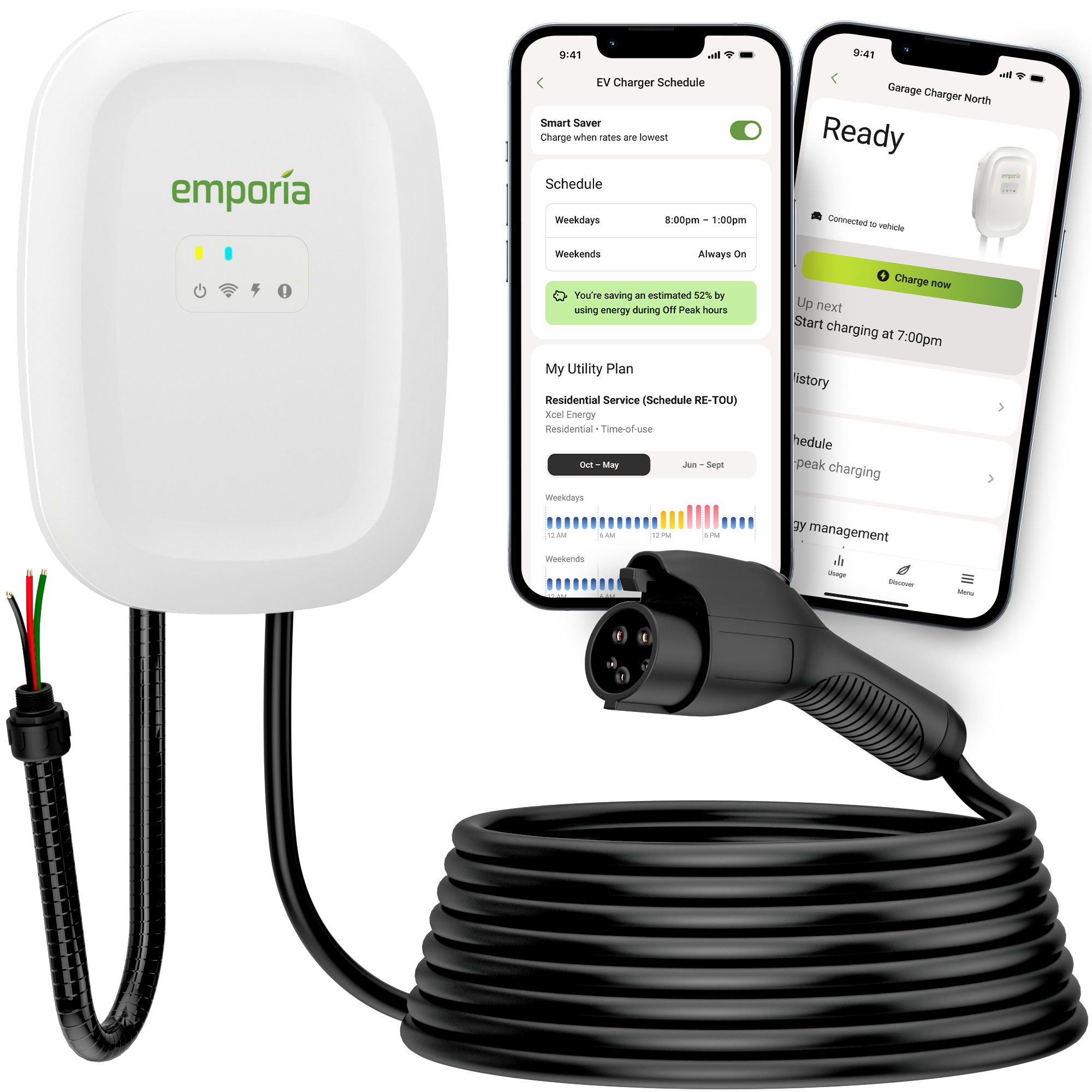

The Emporia EV Charger with ProControl is a charging solution ideal for businesses, buildings, condos, rentals, and fleets that want to provide access controlled EV charging to their employees, tenants, guests, and customers. The Emporia EV Charger is NEMA Type 4 rated for both indoor and outdoor use. It comes with a sign with a 5-digit charge code, mounting hardware, and a 24’ cable with an SAE J1772 connector so it works with all electric cars. ProControl is secure, online service that allows administrators to easily add or remove drivers, control access to specific chargers, and download relevant data for billing or reconciliation purposes.

Features and Benefits:

UL and ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER. DEFAULT CHARGE RATE is 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
EMPORIA PROCONTROL is an online management system giving you total control to:

Limit access to your Emporia EV Charger
Invite, approve, and remove drivers
Control advanced energy management features
Review and download reporting data for billing or
reconciliation

UL LISTED WITH YOUR SAFETY IN MIND. Manufactured to meet the safety criteria defined by these industry standards: NEC 625, SAE J1772, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
HARDWIRED OR PLUGGED INSTALLATION - 11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) (up to 48A hardwired or up to 40A NEMA Type 14-50P with 24" cable compliant with 2017 NEC Section 625.17(A)(3)). Requires a dual-pole, dedicated breaker at 60A+ for a 48A charge or 50A+ for a 40A charge. A professional electrician is recommended for hardwiring or installing a NEMA Plug.
COMPATIBLE WITH ANY EV. The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
REAL-TIME ENERGY DATA: REQUIRES 2.4 GHz WIFI WITH AN INTERNET CONNECTION to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
QUALIFIES FOR REBATES AND INCENTIVES. Qualifies for Federal alternative fuel tax credit for 30% of the cost of the charger and installation (up to $1,000). Your state, province, or local utility may also offer rebates and incentives. Find out if you qualify for additional United States incentives or additional Canadian incentives. Consult your tax professional for more information.

Check out the Technical Specs | Download the Spec Sheet PDF

Charging Station dimensions:

12.6" x 9" x 3.4" (320mm x 230mm x 86mm)

Charging Gun dimensions:

5.3" x 2.2" (135mm x 56mm)
