200A 3-Phase Current Sensor (included with 3-Phase Bundles)
Have a Light Commercial 3-Phase Electrical System?
THIS CLAMP IS INCLUDED WITH 3-PHASE BUNDLES
If you already own a 2-phase Vue, this extra clamp will upgrade your existing Vue to 3-phase for light commercial 3-phase/4-wire electrical systems less than 600A. Does not work with 3-phase/3-wire systems.
- Dedicated 200A 3-phase sensor
- Accurate energy monitoring
- For systems where each leg does not exceed 200A (600A total)
- Plugs into your Emporia Vue
- Easy installation
- 3-PHASE GEN 1 VUES ARE NOT SOLAR CAPABLE
Must be used with the Emporia Vue.
WILL ONLY WORK IN VUE ENERGY MONITOR PORTS
(not meant for use in 50A Vue Expansion Module ports)

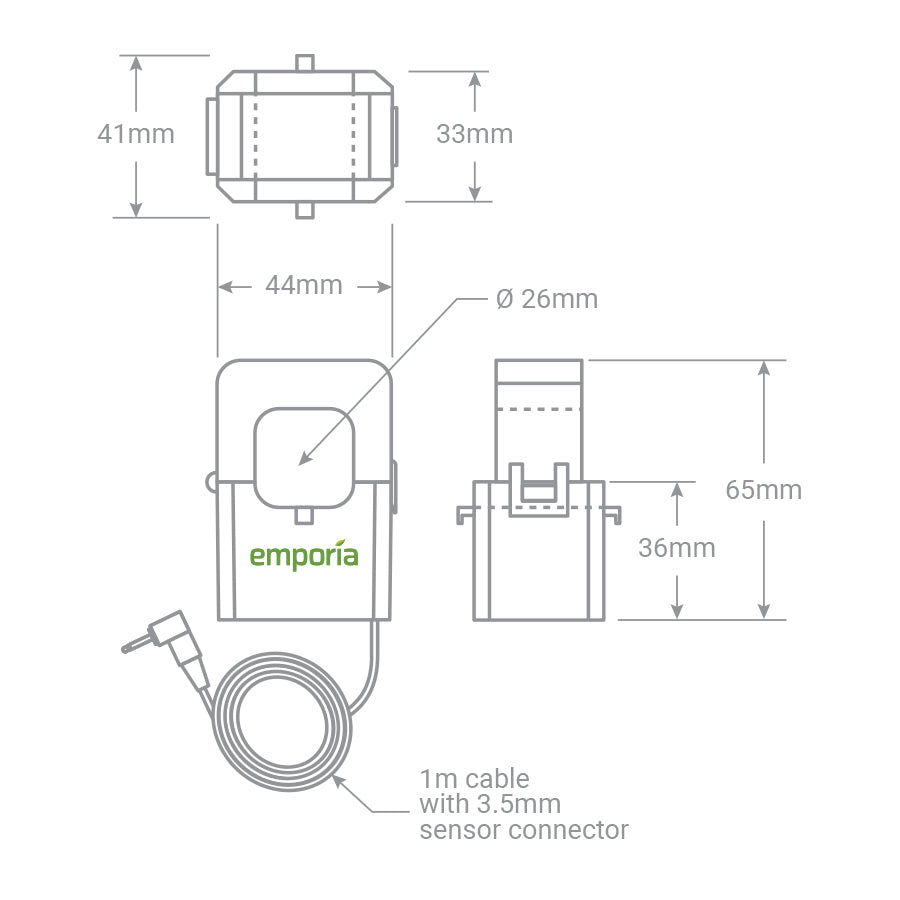

200A sensor dimensions:
- 2.6" x 1.7" x 1.6" (65mm x 44mm x 41mm)
- Window diameter: 1" (26mm)
- Cable length: 39" (1m)
- Connector plug: 3.5mm
